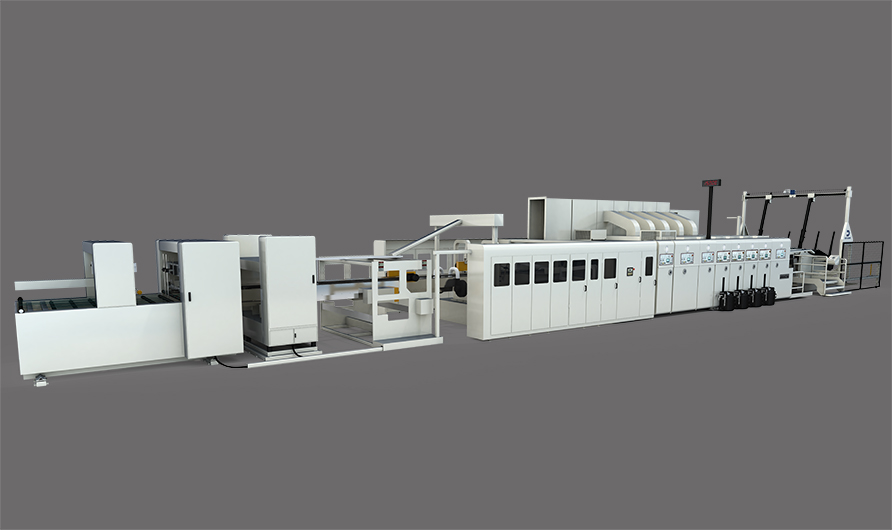

SUPER STAR Ⅲ—BOTTOM PRINTING OPEN-CLOSE TYPE/FFG & STITCHER

MACHINE FEATURES：
Well-established design philosophy for bottom printing machine inline with folder gluer & stitcher
Informationization management combine with the logistics planning of entire factory
Multiple use to satisfy the different order change
Save space, shorten the process, and greatly reduce the human cost
Integration control, easy operation
Multiple pre-creasing to reinforce the folding and shaping quality precisely control the folding accuracy

Super intelligence production management system
Multi machines field monitoring production capability
Ready to connect ERP, information management
Automatic stored and recalled orders,quick order change and high efficiency
Central control monitoring order preparation,reducing communication and time cost
Remote diagnose and intelligent maintenance reminder, reducing down-time and maintenance cost

Feeder unit
Servo motor drive lead edge feeding system
Electronic adjustable feeding stroke
Extended anti-static dust removing system, reduce the down-time for printing plate cleaning

Printer unit
Vacuum paperboard transfer system
Quick-lock or matthews plate mounting system
Roll-to-roll or single/chamber doctor blade
Optional: Double-side printing
Optional: Transfer unit

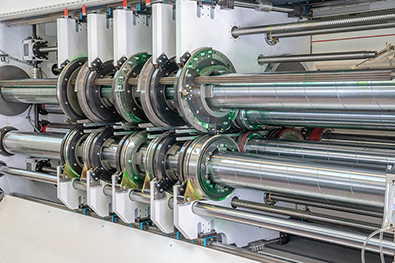

Slotter unit
Single shaft with double creasers slotter
The slotting boss move along linear bearing driven by lead screw for more flexible and precise movement
Optional: Double shafts slotter or Extended servo driven slotter

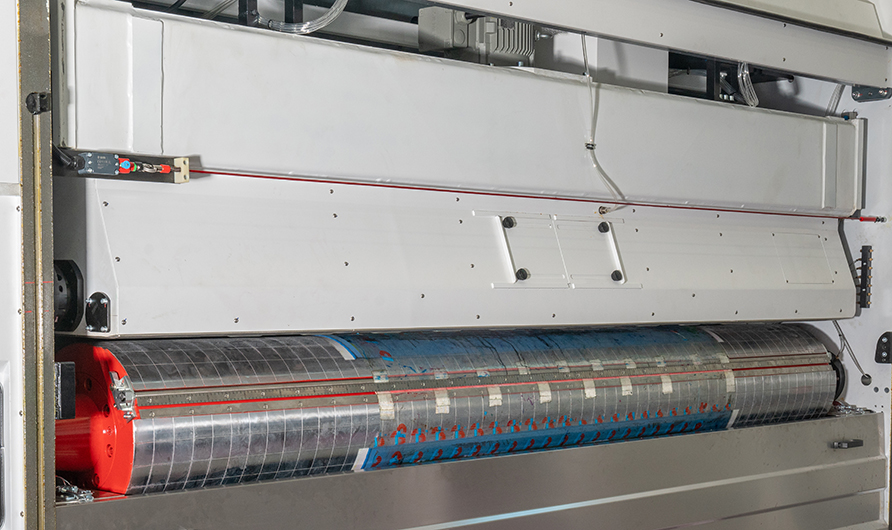

Die-cutter unit
Independent servo motor drive for anvil cover cylinder, side to side oscillation of anvil cylinder 50mm
Micro grind anvil trimming system: when every 10,000 pieces are die-cutting, the system will adjust the anvil cylinder speed according to maintain a constant speed with the die cylinder and paperboard
Optional: Independent servo motor drive for die cylinder
Optional: Micro grind anvil trimming syste adopt tungsten carbide steel roll
Optional: Quick lock mounting system reduce the wood die change time

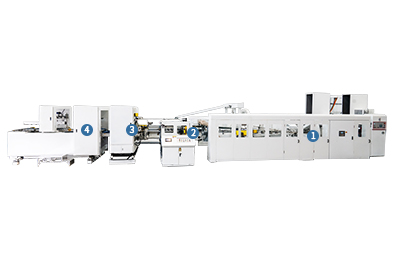

Introduction
①Creasing & folding transfer unit：• Vacuum belt transfer with creasing and folding device to achieve accurate creasing• 90 degrees of paperboard folding with multiple precreasing to achieve accurate folding
②Shaping unit：• Patented box shaping calibration function to assure the fishtail and gap tolerance accuracy • Shaping calibration for each box, max. speed up to 167pcs/min
③Stitching unit：• Germany-made swing type stitching head with speed 1290 stitches/min • Tracking type stitching technology to avoid damage of paperboard (Including recycled or heavy paperboard etc.)
④Counter ejector：• Free set counting quantity for each bundle • With fishtail calibration system to synchronize with shaping section and assure the fishtail tolerance accuracy
